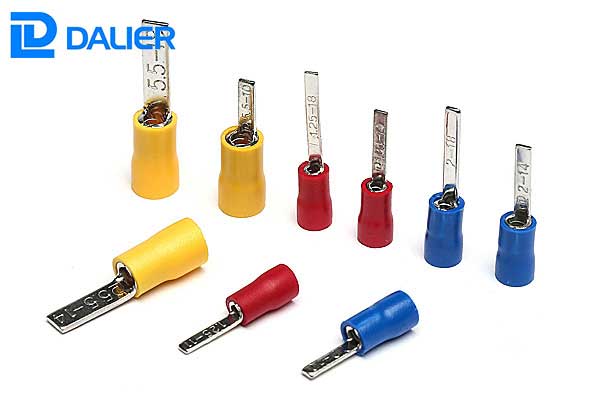

Blade Terminal Supplier
YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.
Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.
We are producing strictly reference to the technical standard advanced industrial and examined by the national electrical control and distribution equipment quality supervision testing center. It possessing first-class equipment and developing engineers, products are made that use the high purity material. The contacts series are complete, numerous in varieties, that are welcome to many clients for its excellent quality and favorable price!
TEL:+008613757750709
FAX:86-577-62766133
product description
Cable size: 0.5~1.5mm²(A.W.G.22~16)
Max current: Imax=19A
Material: purple copper
Thickness: 0.7mm
| Item No. | Dimension | |||||
| B(mm) | L(mm) | Fmm) | H(mm) | D (mm) | ||
| DBV1.25-10 | 2.3 | 20.6 | 10 | 10.6 | 4.3 | |
| DBV1.25-11 | 2.3 | 21.6 | 11 | |||
| DBV1.25-14 | 2.3 | 24.6 | 14 | |||
| DBV1.25-18 | 2.3 | 28.6 | 18 |
Material: purple copper
Insulating material: PVC
| Item No. | Cable size | Dimension | |||
| A.W.G | mm² | I(mm) | d (mm) | L(mm) | |
| BV1.25 | 22-16 | 0.5-1.5 | 15 | 1.7 | 25 |
| BV2 | 16-14 | 1.5-2.5 | 15 | 2.3 | 25 |
| BV5.5 | 12-10 | 4-6 | 15 | 3.4 | 25 |
| BV8 | #8 | 6-10 | 21 | 4.5 | 32 |
| BV14 | #6 | 10-16 | 26 | 5.8 | 42 |
| BV22 | #4 | 16-25 | 29 | 7.7 | 50 |
| BV38 | #2 | 35-50 | 32 | 9.4 | 55 |
